Grease Fitting 2 of 4

Grease Fitting 2 for Sale Grease Fitting 2 for Sale Grease Fitting 2 for Sale
Button Head Fittings
Part Number Thread Hex Overall Shank
A1184 1/8 PTF 5/8 3/4 11/32
A1186 1/4 NPTF 5/8 53/64 27/64
A1188 3/8 NPTF 3/4 61/64 31/64
A1190 1/2 NPTF 7/8 1-1/16 35/64
C69 1/8 NPTF 5/8 31/32 13/32
M1184 1/8 PTF 5/8 3/4 11/32
1823 1/4 NPTF 7/8 1-1/4 1/2
1822 3/8 NPTF 7/8 1-5/16 9/16
1820 1/2 NPTF 7/8 1-1/16 1/2
Alemite Standard Button Head Fittings are used in rugged applications such as heavy machinery, construction equipment and off road equipment.
1/4-28 Stainless Fittings

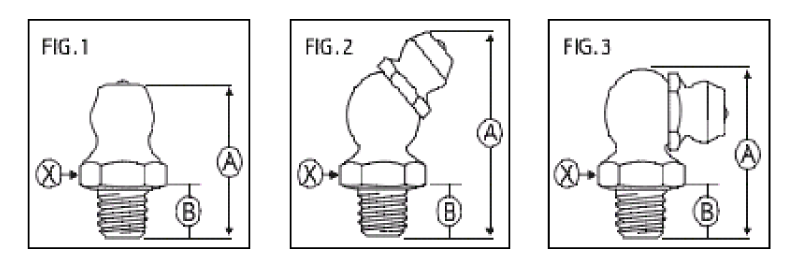

Part Number Style Hex Overall Shank
1966S Straight 5/16 .54 5/16
1968S 45 3/8 .88 3/8
1969S 90 3/8 .69 3/8
1/8 PTF Stainless Fittings
Part Number Style Hex Overall Shank
1961S Straight 7/16 .62 .25
1921S 30 7/16 1.25 .34
1922S 67.5 7/16 .95 .34
1923S 90 7/16 .82 .27
1/4-28 Monel Fittings
Part Number Style Hex Overall Shank
1966M Straight 5/16 17/32 3/16
1968M 45 5/8 13/16 13/64
1969M 90 3/8 3/4 13/64
1/8 PTF Monel Fittings
Part Number Style Hex Overall Shank
1961M Straight 7/16 3/4 5/16
1962M Straight 7/16 5/8 9/32
1921M 30 7/16 1-1/4 11/32
1922M 67.5 7/16 61/64 11/32
1923M 90 7/16 7/8 11/32
Drive Grease Fittings
Part Number Drive Style Overall Hex Shank
1736 1/8, no ball check Straight 9/16 5/16 1/4
3019 1/8, no ball check Straight 15/32 5/16 5/32
1728 3/16 Straight 33/64 5/16 1/4
3006 3/16, no ball check Straight .484 9/32 .219
3009 3/16, no ball check Straight .390 5/16 .105
3005 3/16, no ball check Straight .468 5/16 .172
1633 3/16, no ball check Straight 5/8 5/16 1/4
1992 3/16 45 53/64 3/16 7/32
1646 3/16 65 23/32 3/8 7/32
1743 1/4 Straight 35/64 5/16 1/4
321381 1/4, no ball check Straight 35/64 11/32 1/4
1952 1/4, no ball check Straight 15/32 11/32 1/8
1744 1/4 65 49/64 1/4 9/32
1608 5/16 Straight 9/16 3/8 17/64
1630 5/16 65 23/32 3/8 7/32
1699 5/16, no ball check Straight 5/8 3/8 7/32
1666 3/8, no ball check Straight 37/64 7/16 7/32
Drive Type Grease Fittings are designed for fast production line installation in untapped holes to avoid thread tapping costs. The hole size and shank dimensions are for reference use only. Test applications should be conducted to determine the correct hole size, which varies depending on the type and hardness of the metal. Drive Type Grease Fittings have a serrated shank, which facilitates the substitution of damaged grease fittings in old or oversize holes. Although drive fittings grip securely, they are recommended for low and medium pressures. Drive Grease Fittings are referred to as Drive Zerk Fittings, Press In Grease Fittings, Drive Lubrication Fittings, & Drivable grease fittings

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
