Groove Pins
Low Carbon, Alloy Steel, Stainless Steel
Scroll Right →
| Nominal Size | Double Shear Load |
| Material |
| Low Carbon Steel | Alloy Steel | Stainless Steel |
| 1/32 | 100 | 180 | 140 |
| 3/64 | 220 | 400 | 300 |
| 1/16 | 410 | 720 | 540 |
| 5/64 | 620 | 1120 | 860 |
| 3/32 | 890 | 1600 | 1240 |
| 7/64 | 1220 | 2180 | 1680 |
| 1/8 | 1600 | 2820 | 2200 |
| 5/32 | 2180 | 4520 | 3310 |
| 3/16 | 2820 | 6440 | 4760 |
| 7/32 | 4520 | 8770 | 6480 |
| 1/4 | 6440 | 11,500 | 8460 |
| 5/16 | 8770 | 17,900 | 12,700 |
| 3/8 | 11,000 | 26,000 | 18,200 |
| 7/16 | 15,000 | 35,200 | 24,800 |
| 1/2 | 19,600 | 46,000 | 32,400 |
Scroll Right →
| Type | Low Carbon | Shear Proof | Stainless |
| E or 5 | PGE020---- | PGE010---- | PGE302---- |
| A or 1 | PGA020---- | PGA010---- | PGA302---- |
| H or 2A | PGH020---- | PGH010---- | PGH302---- |
| G or 67 | PGG020---- | PGG010---- | PGG302---- |
| C or 24 | PGC020---- | PGC010---- | PGC302---- |
| U or 3H | PGU020---- | PGU010---- | PGU302---- |
| | | RC: 18-20 | RC: 40-48 |

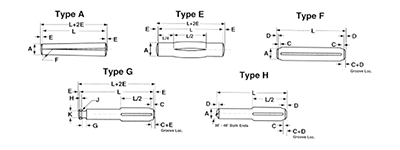

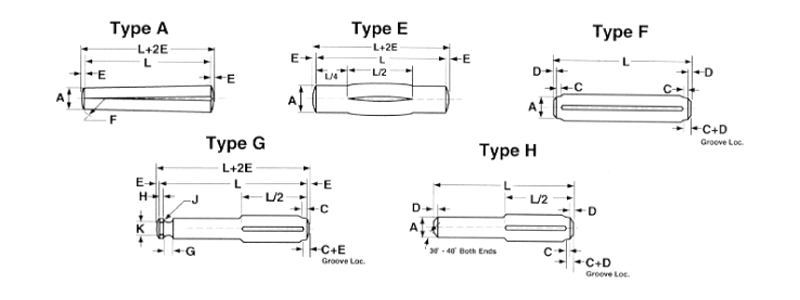

Scroll Right →
| Nom Size |
Basic Pin Diam |
A |
C |
F |
G |
H |
J |
K |
|
| Pin Diamter |
Pilot Length |
Crown Radius |
Neck Width |
Shoulder Length |
Neck Raid |
Neck Diameter |
|
| Max |
Min |
Ref |
Max |
Min |
Max |
Min |
Max |
Min |
Ref |
Max |
Min |
|
| 1/32 | .0312 | .0312 | .0297 | .015 | --- | --- | --- | --- | --- | --- |
--- | --- | --- |
| 3/64 | .0469 | .0469 | .0454 | .031 | --- | --- | --- | --- | --- | --- |
--- | --- | --- |
| 1/16 | .0625 | .0625 | .0610 | .031 | .088 | .068 | --- | --- | --- | -- |
--- | --- | --- |
| 5/64 | .0781 | .0781 | .0756 | .031 | .104 | .084 | --- | --- | --- | --- |
--- | --- | --- |
| 3/32 | .0938 | .0938 | .0923 | .031 | .135 | .115 | .038 | .028 | .041 | .031
| .016 | .067 | .057 |
| 7/64 | .1094 | .1094 | .1074 | .031 | .150 | .130 | .038 | .028 | .041 | .031 |
.016 | .082 | .072 |
| 1/8 | .1250 | .1250 | .1230 | .031 | .166 | .146 | .069 | .059 | .041 | .031 |
.031 | .088 | .078 |
| 5/32 | .1563 | .1563 | .1543 | .062 | .198 | .178 | .069 | .059 | .057 | .047 |
.031 | .109 | .099 |
| 3/16 | .1875 | .1875 | .1855 | .062 | .260 | .240 | .069 | .059 | .057 | .047 |
.031 | .130 | .120 |
| 7/32 | .2188 | .218 | .2168 | .062 | .291 | .271 | .101 | .091 | .072 | .062 |
.047 | .151 | .141 |
| 1/4 | .2500 | .2500 | .2480 | .062 | .322 | .302 | .101 | .091 | .072 | .062 |
.047 | .172 | .162 |
| 5/16 | .3125 | .3125 | .3105 | .094 | .385 | .365 | .132 | .122 | .104 | .094 |
.062 | .214 | .204 |
| 3/8 | .3750 | .3750 | .3730 | .094 | .479 | .459 | .132 | .122 | .135 | .125 |
.062 | .255 | .245 |
| 7/16 | .4375 | .4375 | .4355 | .094 | .541 | .521 | .195 | .185 | .135 | .125 |
.094 | .298 | .288 |
| 1/2 | .5000 | .5000 | .4980 | .094 | .635 | .615 | .195 | .185 | .135 | .125 |
.094 | .317 | .307 |
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
