Serrated Flange Nuts

Serrated Flange Nuts for Sale Serrated Flange Nuts for Sale Serrated Flange Nuts for Sale

Zinc = NSF010----Z1

Scroll Right →

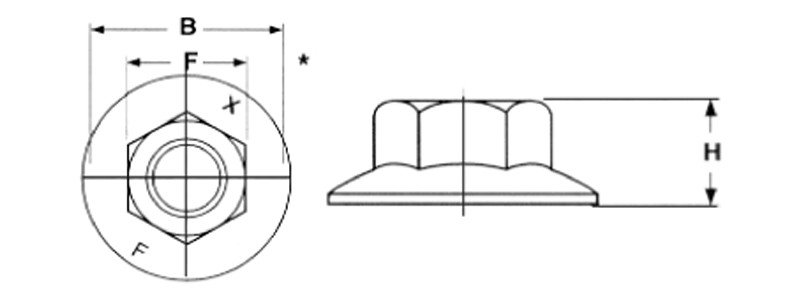

Bolt Diameter F G B H
Across Flats Across Corners Flange Diameter Nut Thickness
Max Min Max Min Max Min Max Min
6 .312 .302 .361 .342 .422 .406 .171 .156
8 .344 .334 .397 .381 .469 .452 .203 .187
10 .375 .365 .433 .416 .500 .480 .219 .203
12 .438 .428 .505 .488 .594 .574 .236 .222
1/4 .438 .428 .505 .488 .594 .574 .236 .222
5/16 .500 .489 .577 .557 .680 .660 .283 .268
3/8 .562 .551 .650 .628 .750 .728 .347 .330
7/16 .688 .675 .794 .768 .937 .910 .395 .375
1/2 .750 .736 .866 .840 1.031 1.000 .458 .437
9/16 .875 .851 1.010 .982 1.188 1.155 .506 .483
5/8 .938 .922 1.083 1.051 1.281 1.248 .569 .545
3/4 1.125 1.088 1.299 1.240 1.500 1.460 .675 .627
7/8 1.179 1.166 1.361 1.295 1.682 - .786 .742

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
