Drive Screw Type U

(Round Head)

Drive Screw Type U for Sale Drive Screw Type U for Sale Drive Screw Type U for Sale

Zinc = U010------Z1

Stainless = U188------

Scroll Right →

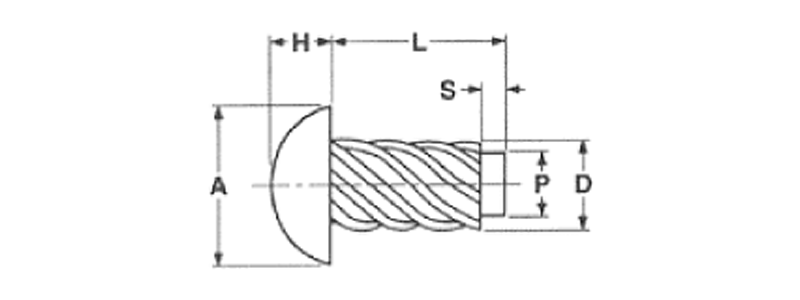

Nominal ScrewSize NumberOf Thread Starts D A H P Recommened Hole Size
Outside Diameter Head Diameter Head Height Pilot Diameter Drill Size No. Hole Diameter
Max. Min. Max. Min. Max. Min. Max. Min.
00 6 0.060 0.057 0.099 0.090 0.034 0.026 0.049 0.046 55 0.052
0 6 0.075 0.072 0.127 0.118 0.049 0.041 0.063 0.060 51 0.067
2 8 0.100 0.097 0.162 0.146 0.069 0.059 0.083 0.080 44 0.086
4 7 0.116 0.112 0.211 0.193 0.086 0.075 0.096 0.092 37 0.104
6 7 0.140 0.136 0.260 0.240 0.103 0.091 0.116 0.113 31 0.120
7 8 0.154 0.150 0.285 0.264 0.111 0.099 0.126 0.122 29 0.136
8 8 0.167 0.162 0.309 0.287 0.120 0.107 0.136 0.132 27 0.144
10 8 0.182 0.177 0.359 0.334 0.137 0.123 0.150 0.146 20 0.161
12 8 0.212 0.206 0.408 0.382 0.153 0.139 0.177 0.173 11 0.191
14 9 0.242 0.236 0.457 0.429 0.170 0.155 0.202 0.198 2 0.221

Scroll Right →

Diameter Computer Code
#00 0000
#0 000
#2 002
#4 004
#6 006
#7 007
#8 008
#10 010
#12 012
#14 014

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
