Eye Bolt w/ No Shoulder

C-1035 Steel

Eye Bolt w/ No Shoulder for Sale Eye Bolt w/ No Shoulder for Sale Eye Bolt w/ No Shoulder for Sale

Plain = IF010-------

Zinc = IF010-------Z1

Galvanized = IF010-------GD

Scroll Right →

ABCDEF

Weight per 100

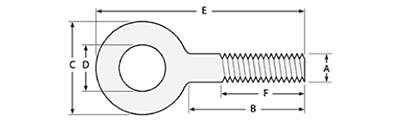

DiameterShank LengthOutside Eye DiameterInside Eye DiameterOverall LengthThread Length
1/41"1 1/4"3/4"2 1/4"1"5
5/161 1/8"1 1/2"7/8"2 5/8"1 1/8"10.5
3/81 1/4"1 21/32"1"2 29/32"1 1/4"15.5
7/161 3/8"1 27/32"1 3/32"3 7/32"1 3/8"20.5
1/21 1/2"2 1/16"1 3/16"3 9/16"1 1/2"33
9/161 5/8"2 9/32"1 9/16"3 29/32"1 5/8"44.5
5/81 3/4"2 1/2"1 3/8"4 1/4"1 3/4"64
3/42"2 13/16"1 1/2"4 13/16"2"90.5
7/82 1/4"3 1/4"1 11/16"5 1/2"2 1/4"135
12 1/2"3 9/16"1 13/16"6 1/16"2 1/2"190.5
1 1/82 3/4"4"2"6 3/4"2 3/4"299.5
1 1/43"4 7/16"2 3/16"7 7/16"3"399
1 1/23 1/2"5 3/16"2 1/2"8 11/16"3 1/2"662.5

Dimensions per Chicago Hardware

Diameter and ThreadWorking Limit
Straight Pull45° Pull (Shoulder Only)
1/4"-20500125
5/16"-18900225
3/8"-161400350
7/16"-142000500
1/2"-132600650
9/16"-123200750
5/8"-1140001000
3/4"-1060001500
7/8"-970001750
1"-890002250
1 1/8"-7120002500
1 1/4"-7150003750
1 1/2"-6210004900

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
