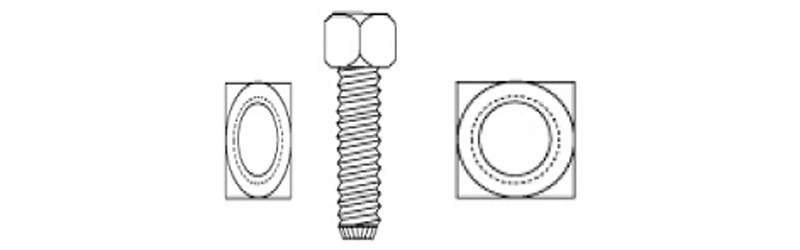

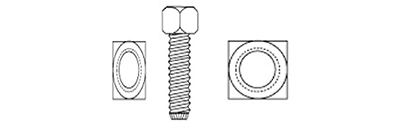

Jack Bolts

Jack Bolts for Sale Jack Bolts for Sale Jack Bolts for Sale

Plain = QSC010-------
Case Hardened Steel

Zinc = QSC010-------Z1

Scroll Right →

Bolt DiameterWidth Across FlatsWidth Across CornersHead Height
MaxMinMaxMinMaxMin
100.1880.1800.2650.2470.1480.134
1/40.250.2410.3540.3310.1960.178
5/160.3120.3020.4420.4150.2450.224
3/80.3750.3620.5300.4970.2930.270
7/160.4380.4230.6190.5810.3410.315
1/20.5000.4840.7070.6650.3890.361
9/160.5620.5450.7950.7480.4370.407
5/80.6250.6060.8840.8330.4850.452
3/40.7500.7291.0601.0010.5820.544
7/80.8750.8521.2371.1700.6780.635
11.000.9741.4141.3370.7740.726
1-1/81.1251.0961.5911.5050.8700.817
1-1/41.2501.2191.7681.6740.9660.908
1-3/81.7501.3421.9451.8431.0631.00
1-1/21.5001.4642.1212.0101.1591.091

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
