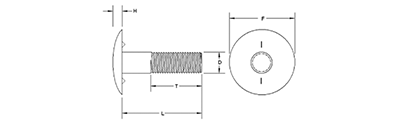

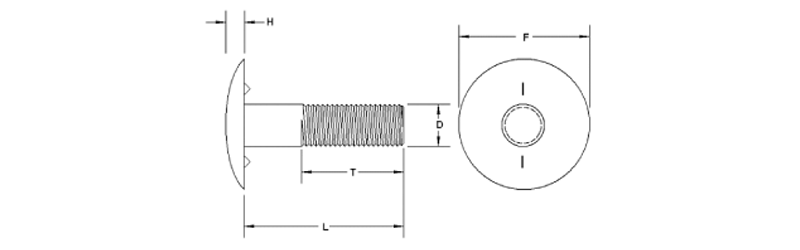

| Bolt Diameter | Body Diameter D, Max | Head Diameter | Head Height |
| 3/8 | 0.388 | 1-5/16 | 3/16 |
| 1/2 | 0.515 | 1-3/4 | 1/4 |
| 5/8 | 0.642 | 1-15/16 | 5/16 |
| 3/4 | 0.768 | 2-1/4 | 3/8 |
| 7/8 | 0.895 | 2-5/8 | 7/16 |
| 1 | 1.022 | 2-7/8 | 1/2 |
| 1-1/8 | 1.149 | 2-7/8 | 1/2 |
| 1-1/4 | 1.277 | 2-7/8 | 1/2 |
| 1-3/8 | 1.404 | 2-7/8 | 1/2 |
| 1-1/2 | 1.531 | 2-7/8 | 1/2 |
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
