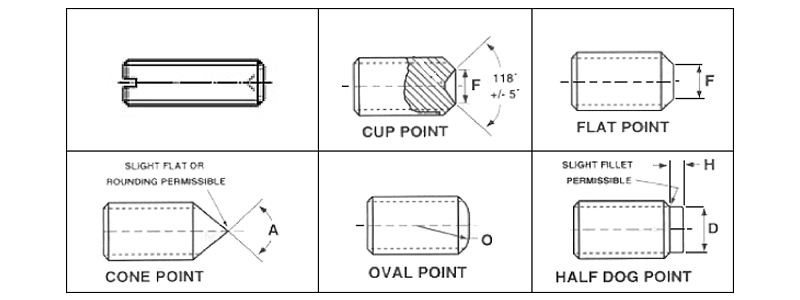

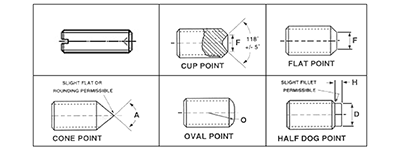

Cup Point
Flat Point
Cone Point
Oval Point
Half Dog Point
Full Dog Point
Alloy - SSC800-------
Alloy - SSFP800-------
Alloy - SSCP800-------
Alloy - SSOP800-------
Alloy - SSHD800-------
Alloy - SSFD800-------
Class 3A Fit
Stainless = SSC188-------
Stainless = SSFP188-------
Stainless = SSCP188-------
Stainless = SSOP188-------
Stainless = SSHD188-------
Stainless = SSFD188-------
Alloy: Rockwell Hardness 38-43
| Nominal Size | S | K | F | 0 | D | H | |||
| Hexagon Socket Size | Min. Key Engagement | Cup & Flat Point Diameter | Oval Point Radius | Half Dog Point | |||||
| Diameter | Length | ||||||||
| Max | Min | Max | Min | Max | Min | ||||
| 4 | 0.050 | 0.070 | 0.061 | 0.051 | 0.084 | 0.075 | 0.070 | 0.030 | 0.026 |
| 5 | 1/16 | 0.080 | 0.067 | 0.057 | 0.094 | 0.083 | 0.078 | 0.033 | 0.027 |
| 6 | 1/16 | 0.080 | 0.074 | 0.064 | 0.104 | 0.092 | 0.087 | 0.038 | 0.032 |
| 8 | 5/64 | 0.090 | 0.087 | 0.076 | 0.123 | 0.109 | 0.103 | 0.043 | 0.037 |
| 10 | 3/32 | 0.100 | 0.102 | 0.088 | 0.142 | 0.127 | 0.120 | 0.049 | 0.041 |
| 1/4 | 1/8 | 0.125 | 0.132 | 0.118 | 0.188 | 0.156 | 0.149 | 0.067 | 0.059 |
| 5/16 | 5/32 | 0.156 | 0.172 | 0.156 | 0.234 | 0.203 | 0.195 | 0.082 | 0.074 |
| 3/8 | 3/16 | 0.188 | 0.212 | 0.194 | 0.281 | 0.250 | 0.241 | 0.099 | 0.089 |
| 7/16 | 7/32 | 0.219 | 0.252 | 0.232 | 0.328 | 0.297 | 0.287 | 0.114 | 0.104 |
| 1/2 | 1/4 | 0.250 | 0.291 | 0.70 | 0.375 | 0.344 | 0.334 | 0.130 | 0.120 |
| 5/8 | 5/16 | 0.312 | 0.371 | 0.347 | 0.469 | 0.469 | 0.456 | 0.164 | 0.148 |
| 3/4 | 3/8 | 0.375 | 0.450 | 0.425 | 0.562 | 0.562 | 0.549 | 0.196 | 0.180 |
| 7/8 | 1/2 | 0.500 | 0.530 | 0.502 | 0.656 | 0.656 | 0.642 | 0.227 | 0.211 |
| 1 | 9/16 | 0.562 | 0.609 | 0.579 | 0.750 | 0.750 | 0.734 | 0.260 | 0.240 |
Dimensional specifications Per ANSI/ASME B18.3
Note: Half Dog, Full Dog and Cone points are measured in overall length.
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
