Thumb Screw No Shoulder
Thumb Screw With Shoulder

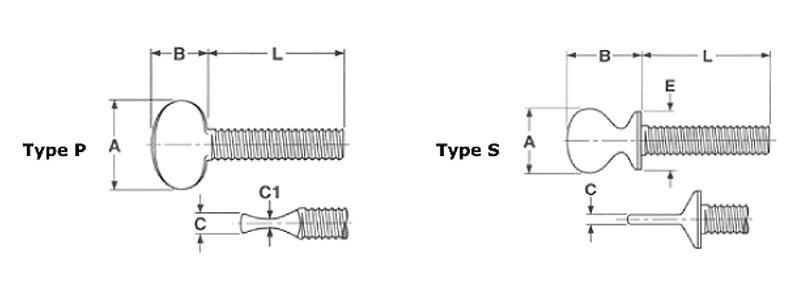

Type P Type S

Zinc = T020-------Z1
Zinc = TS020-------Z1

Type P

Scroll Right →

Nominal Size Thread Pitch A B C C1 L
Head Width Head Height Head Thickness Head Thickness Practical Screw Lengths
Max Min Max Min Max Min Max Min Max Min Max Min
8 32 0.51 0.49 0.32 0.30 0.09 0.07 0.04 0.02 1.00 0.38
10 24 0.89 0.83 0.78 0.66 0.18 0.16 0.08 0.06 2.00 0.50
1/4 20 1.05 0.99 0.94 0.81 0.24 0.22 0.10 0.08 3.00 0.50
5/16 18 1.21 1.15 1.00 0.88 0.27 0.25 0.11 0.09 4.00 0.50

Type S

Scroll Right →

1/4 20 0.55 0.52 0.64 0.61 0.07 0.05 0.47 0.44 1.50 0.50

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
